Explanation
Profiling is a feature that allows Aruba switches to automatically identify and classify devices connected to them based on various attributes such as MAC address, DHCP options, LLDP information, etc. Profiling can be used to dynamically set the PoE priority on a switch port based on the device type and power requirements.
For example, an IP camera may have a higher PoE priority than a printer or a PC. Profiling can also be used to apply other configuration settings such as VLANs, ACLs, QoS, etc. based on the device profile.
References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-ove

Explanation
dBm is a unit of power that measures the ratio of a given power level to 1 mW. The formula to convert dBm to mW is: P(mW) = 1mW * 10^(P(dBm)/10). Therefore, -20 dBm corresponds to 0.01 mW, as follows: P(mW) =
1mW * 10^(-20/10) = 0.01 mW References:https://www.rapidtables.com/convert/power/dBm_to_mW.html

Explanation
This configuration script will achieve the task as it follows the guidelines given by the Senior Engineer. It creates VLAN 20 with name Mgmt, adds L3 SVI on VLAN 20 with IP address 10.1.1.10/24, creates LAG 1 with LACP mode active for the uplink, uses VLAN 20 as the native VLAN on the LAG, and ensures that the interfaces are all ON.
References:https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6790/GUID-8F0E7E8B-0F4

Explanation
The ideal Aruba access switch for a cost-effective connection to 200-380 clients, printers and APs per distribution rack is the Aruba CX 6200. This switch series is a cloud-manageable, stackable access switch series that is ideal for enterprise branch offices and campus networks, as well as SMBs. The CX 6200 series offers the following benefits:
Enterprise-class connectivity: The CX 6200 series supports ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
Power and speed for users and IoT: The CX 6200 series provides built-in 1/10GbE uplinks and 30W to
60W of Class 4 to Class 6 PoE for powering devices such as APs and cameras.
Scalable growth made simple: The CX 6200 series supports Aruba Virtual Switching Framework (VSF) that allows you to quickly grow your network to eight members in a single stack using high-performance built-in 10G SFP ports.
Management flexibility: The CX 6200 series supports a choice of management, including cloud-based and on-prem Central, CLI, switch Web GUI and programmability with AOS-CX operating system, and REST APIs.
The other options are not ideal because:
Aruba CX 6400: This switch series is a high-availability modular switch series that is ideal for versatile edge access to data center deployments. It offers more performance, scalability, and modularity than the CX 6200 series, but it is also more expensive and complex to deploy and manage. It may not be cost-effective for connecting 200-380 clients per distribution rack.
Aruba CX 6300: This switch series is a layer 3 stackable access and aggregation switch series that offers Smart Rate and High Power PoE. It offers more features and performance than the CX 6200 series, but it is also more expensive and may not be necessary for connecting 200-380 clients per distribution rack.
Aruba CX 6000: This switch series is a layer 2 access switch series that offers PoE. It offers less features and performance than the CX 6200 series, and it does not support VSF stacking or routing protocols. It may not be sufficient for connecting 200-380 clients per distribution rack.
References: https://www.arubanetworks.com/products/switches/access/
https://www.arubanetworks.com/products/switches/access/6200-series/
https://www.arubanetworks.com/products/switches/access/6400-series/
https://www.arubanetworks.com/products/switches/access/6300-series/
https://www.arubanetworks.com/products/switches/access/6000-series/

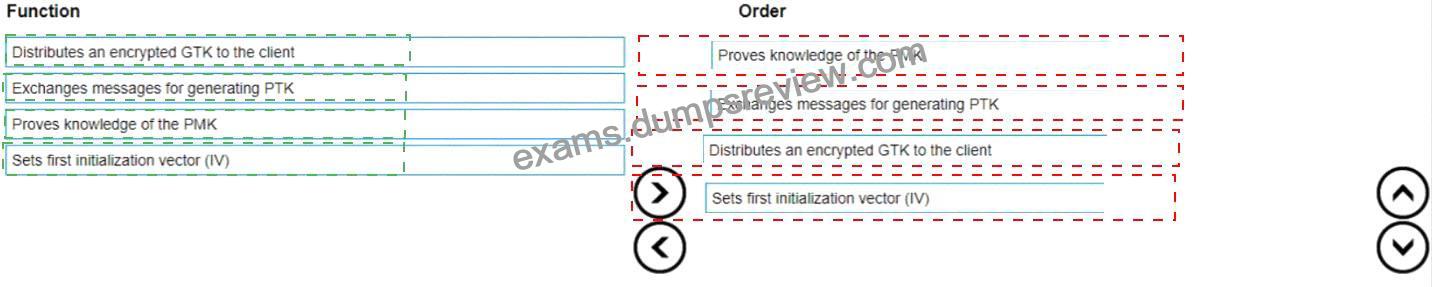

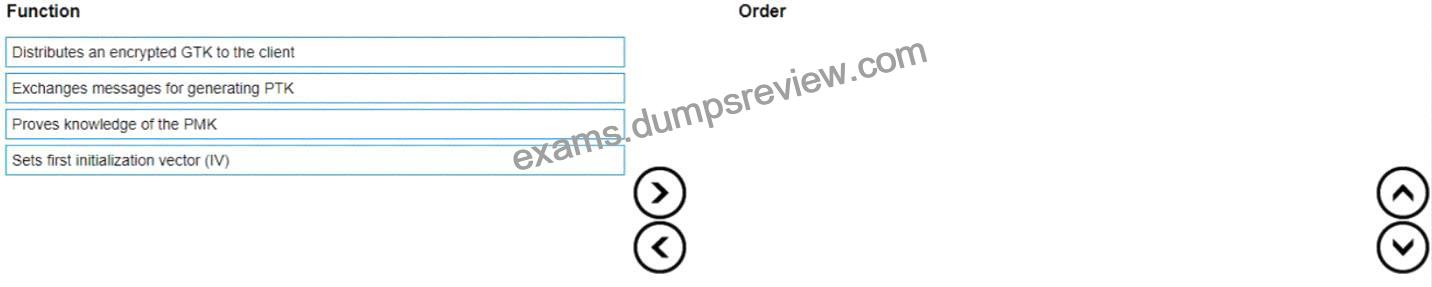

Proves knowledge of the PMK
Exchanges messages for generating PTK
Distributes an encrypted GTK to the client
Sets first initialization vector (IV)

Explanation
AAA Authentication, Authorization, and Accounting (AAA) Authentication, Authorization, and Accounting (AAA) is a framework that provides security services for network access control . AAA consists of three components:
Authentication: The process of verifying the identity of a user or device that wants to access the network based on credentials such as username and password , certificates , tokens , etc . Authentication can use different protocols such as PAP , CHAP , EAP , RADIUS , TACACS+ , etc .
Authorization: The process of granting or denying access to network resources based on the identity and privileges of a user or device . Authorization can use different methods such as ACLs , RBAC , MAC , DAC , etc .
Accounting: The process of recording and reporting the activities and usage of network resources by users or devices . Accounting can use different formats such as syslog , SNMP , NetFlow , etc .
service. Here is my answer:

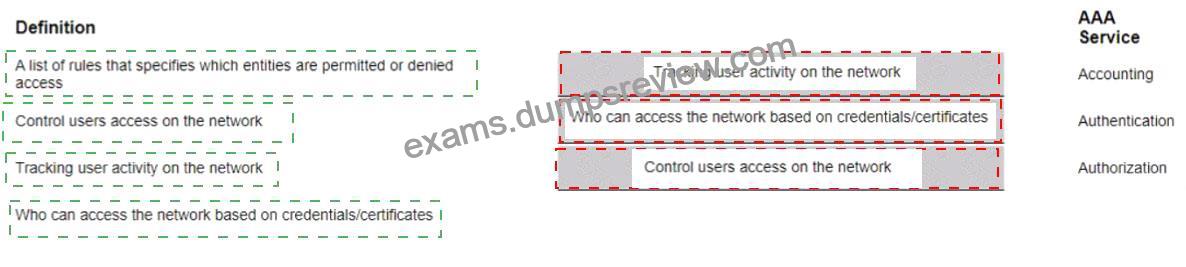

The correct match for each AAA service with its definition is:
Accounting: C. Tracking user activity on the network
Authentication: D. Who can access the network based on credentials/certificates Authorization: B. Control users access on the network The other options are not correct matches because:
A list of rules that specifies which entities are permitted or denied access: This option is a definition of an access control list (ACL) Access Control List (ACL) Access Control List (ACL) is a list of rules that specifies which entities are permitted or denied access to a network resource such as a router , switch , firewall , server , etc . ACLs can be based on different criteria such as source and destination IP addresses , port numbers , protocol types , time of day , etc . ACLs can be applied to different interfaces or directions such as inbound or outbound . ACLs can be verified by using commands such as show access-lists , show ip access-lists , debug ip packet , etc . , not an AAA service.
Who can access the network based on credentials/certificates: This option is a definition of authentication, not authorization. Authorization is the process of granting or denying access to network resources based on the identity and privileges of a user or device, not based on credentials/certificates.
References: https://en.wikipedia.org/wiki/AAA_(computer_security)
https://www.cisco.com/c/en/us/support/docs/security-vpn/remote-authentication-dial-user-service-radius/13838-1

Explanation

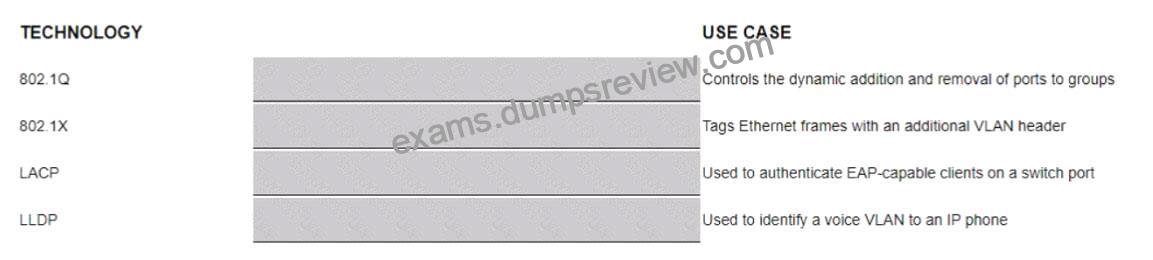

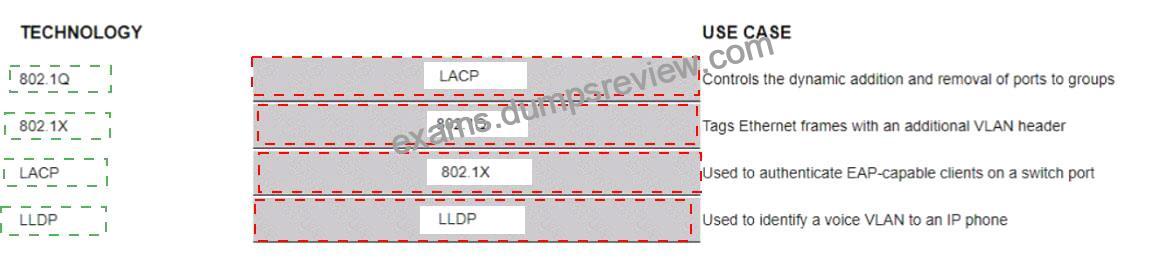

USE CASE: a) Controls the dynamic addition and removal of ports to groups Technology: 3) LACP USE CASE: b) Tags Ethernet frames with an additional VLAN header Technology: 1) 802.1Q USE CASE: c) Used to authenticate EAP-Capable client on a switch port Technology: 2) 802.1X USE CASE: d) Used to identify a voice VLAN to an IP phone Technology: 4) LLDP The following table summarizes the switching technologies and their use cases:
Technology
Use case
1) 802.1Q
802.1Q is a standard that defines how to create and manage virtual LANs (VLANs) on a network. VLANs allow network administrators to logically segment a network into different broadcast domains, improving security, performance, and manageability. 802.1Q tags Ethernet frames with an additional VLAN header that contains a VLAN identifier (VID), which indicates which VLAN the frame belongs to1.
2) 802.1X
802.1X is a standard that defines how to provide port-based network access control (PNAC) on a network.
PNAC allows network administrators to authenticate and authorize devices before granting them access to network resources. 802.1X uses the Extensible Authentication Protocol (EAP) to exchange authentication messages between a supplicant (a device that wants to access the network), an authenticator (a device that controls access to the network, such as a switch), and an authentication server (a device that verifies the credentials of the supplicant, such as a RADIUS server)
3) LACP
LACP stands for Link Aggregation Control Protocol, which is part of the IEEE 802.3ad standard that defines how to bundle multiple physical links into a single logical link, also known as a link aggregation group (LAG) or an EtherChannel. LAGs provide increased bandwidth, load balancing, and redundancy for network connections. LACP controls the dynamic addition and removal of ports to groups, ensuring that only ports with compatible configurations can form a LAG3.
4) LLDP
LLDP stands for Link Layer Discovery Protocol, which is part of the IEEE 802.1AB standard that defines how to discover and advertise information about neighboring devices on a network. LLDP operates at Layer 2 of the OSI model and uses TLVs (type-length-value) to exchange information such as device name, port number, VLAN ID, capabilities, and power requirements. LLDP can be used to identify a voice VLAN to an IP phone by sending a TLV that contains the voice VLAN ID and priority.
References: 1 https://en.wikipedia.org/wiki/IEEE_802.1Q 2 https://en.wikipedia.org/wiki/IEEE_802.1X 3
https://en.wikipedia.org/wiki/Link_aggregation
https://en.wikipedia.org/wiki/Link_Layer_Discovery_Protocol

Explanation
Signal to noise ratio (SNR) is a measure that compares the level of a desired signal to the level of background noise. SNR is defined as the ratio of signal power to the noise power, often expressed in decibels (dB). A high SNR means that the signal is clear and easy to detect or interpret, while a low SNR means that the signal is corrupted or obscured by noise and may be difficult to distinguish or recover1. When the signal from an AP Access Point. AP is a device that allows wireless devices to connect to a wired network using Wi-Fi, or related standards. weakens by being absorbed as it moves through an object, such as a wall or a furniture, the signal power decreases. This reduces the SNR and affects the quality of the wireless connection. The noise power may also increase due to interference from other sources, such as other APs or devices operating in the same frequency band2. Therefore, the correct answer is that SNR decreases when the signal from an AP weakens by being absorbed as it moves through an object. References: 1
https://en.wikipedia.org/wiki/Signal-to-noise_ratio 2
https://documentation.meraki.com/MR/Wi-Fi_Basics_and_Best_Practices/Signal-to-Noise_Ratio_%28SNR%29

Explanation
EAP-TLS is an authentication method that requires client certificates when authenticating to the network. It provides mutual authentication between the client and the server using public key cryptography and digital certificates.
References:https://www.arubanetworks.com/techdocs/ClearPass/6.9/Guest/Content/CPPM_UserGuide/EAP-TLS

Explanation
A UXI (User Experience Insight) is a device that simulates user behavior and tests network performance from the user perspective. It can check different applications, such as HTTP, VOIP, or Office 365, and measure metrics such as latency, jitter, packet loss, and throughput.
References:https://www.arubanetworks.com/products/networking/user-experience-insight/

Explanation
AirMatch is a feature that provides centralized RF planning and optimization service for Aruba wireless networks. It uses cloud-based algorithms and machine learning to optimize the RF performance and user experience. References:https://www.arubanetworks.com/assets/ds/DS_AirMatch.pdf

Explanation

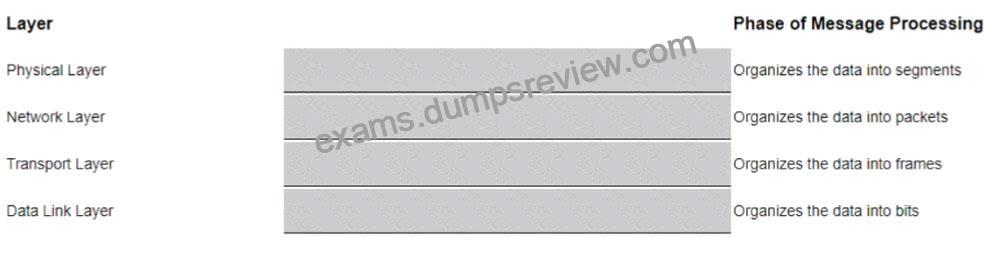

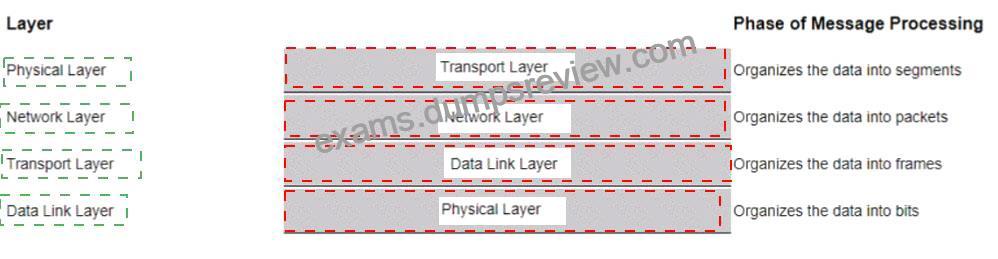

Layer: 1) Physical layer Phase of Message Processing: d) Organize the data into bits Layer: 2) Data Link layer Phase of Message Processing: c) Organize the data into frames Layer: 3) Network layer Phase of Message Processing: b) Organize the data into packets Layer: 4) Transport layer Phase of Message Processing: a) Organize the data into segments The OSI model divides the networking process into seven layers, each representing a different step of the transmission chain. Each layer has its own function and is responsible for well-defined tasks. User data passes sequentially from the highest layer down through the lower layers until the device transmits it externally. The lowest layer, the physical layer, converts the data into bits that can be sent over a physical medium. The second layer, the data link layer, organizes the bits into frames that can be transmitted over a link between two nodes. The third layer, the network layer, organizes the frames into packets that can be routed across a network of nodes. The fourth layer, the transport layer, organizes the packets into segments that can provide reliable and error-free communication between two end points12. References: 1
https://www.linode.com/docs/guides/introduction-to-osi-networking-model/ 2
https://en.wikipedia.org/wiki/OSI_model

Explanation
The RADIUS message that you should look for to ensure a successful connection via 802.1X is Access-Accept. This message indicates that the RADIUS server has authenticated and authorized the supplicant (the device that wants to access thenetwork) and has granted it access to the network resources. The Access-Accept message may also contain additional attributes such as VLAN ID, session timeout, or filter ID that specify how the authenticator (the device that controls access to the network, such as a switch) should treat the supplicant’s traffic.
The other options are not RADIUS messages because:
Authorized: This is not a RADIUS message, but a state that indicates that a port on an authenticator is allowed to pass traffic from a supplicant after successful authentication and authorization.
Success: This is not a RADIUS message, but a status that indicates that an EAP Extensible Authentication Protocol (EAP) is an authentication framework that provides support for multiple authentication methods, such as passwords, certificates, tokens, or biometrics. EAP is used in wireless networks and point-to-point connections to provide secure authentication between a supplicant (a device that wants to access the network) and an authentication server (a device that verifies the credentials of the supplicant). exchange has completed successfully between a supplicant and an authentication server.
Authenticated: This is not a RADIUS message, but a state that indicates that a port on an authenticator has received an EAP-Success message from an authentication server after successful authentication of a supplicant.
References: https://en.wikipedia.org/wiki/RADIUS#Access-Accept
https://www.cisco.com/c/en/us/support/docs/security-vpn/remote-authentication-dial-user-service-radius/13838-1
https://en.wikipedia.org/wiki/IEEE_802.1X#Port-based_network_access_control
https://en.wikipedia.org/wiki/Extensible_Authentication_Protocol#EAP_exchange

Explanation
The field in a Layer 3 IPv4 packet header that is used to mitigate Layer 3 route loops is Time To Live (TTL).
TTL is an 8-bit field that indicates the maximum number of hops that a packet can traverse before being discarded. TTL is set by the source device and decremented by one by each router that forwards the packet. If TTL reaches zero, the packet is dropped and an ICMP Internet Control Message Protocol (ICMP) Internet Control Message Protocol (ICMP) is a network protocol that provides error reporting and diagnostic functions for IP networks. ICMP is used to send messages such as echo requests and replies (ping), destination unreachable, time exceeded, parameter problem, source quench, redirect, etc. ICMP messages are encapsulated in IP datagrams and have a specific format that contains fields such as type, code, checksum, identifier, sequence number, data, etc. ICMP messages can be verified by using commands such as ping , traceroute , debug ip icmp , etc . message is sent back to the source device. TTL is used to mitigate Layer 3 route loops because it prevents packets from circulating indefinitely in a looped network topology. TTL also helps to conserve network resources and avoid congestion caused by looped packets.
The other options are not fields in a Layer 3 IPv4 packet header because:
Checksum: Checksum is a 16-bit field that is used to verify the integrity of the IP header. Checksum is calculated by the source device and verified by the destination device based on the values of all fields in the IP header. Checksum does not mitigate Layer 3 route loops because it does not limit the number of hops that a packet can traverse.
Protocol: Protocol is an 8-bit field that indicates the type of payload carried by the IP datagram. Protocol identifies the upper-layer protocol that uses IP for data transmission, such as TCP Transmission Control Protocol (TCP) Transmission Control Protocol (TCP) is a connection-oriented transport layer protocol that provides reliable, ordered, and error-checked delivery of data between applications on different devices . TCP uses a three-way handshake to establish a connection between two endpoints , and uses sequence numbers , acknowledgments , and windowing to ensure data delivery and flow control . TCP also uses mechanisms such as retransmission , congestion avoidance , and fast recovery to handle packet loss and congestion . TCP segments data into smaller units called segments , which are encapsulated in IP datagrams and have a specific format that contains fields such as source port , destination port , sequence number , acknowledgment number , header length , flags , window size , checksum , urgent pointer , options , data , etc . TCP segments can be verified by using commands such as telnet , ftp , ssh , debug ip tcp transactions , etc . , UDP User Datagram Protocol (UDP) User Datagram Protocol (UDP) is a connectionless transport layer protocol that provides

Explanation
Profiling is a feature that allows Aruba switches to automatically identify and classify devices connected to them based on various attributes such as MAC address, DHCP options, LLDP information, etc. Profiling can be used to dynamically set the PoE priority on a switch port based on the device type and power requirements.
For example, an IP camera may have a higher PoE priority than a printer or a PC. Profiling can also be used to apply other configuration settings such as VLANs, ACLs, QoS, etc. based on the device profile.
References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-ove

Explanation
These commands might help troubleshoot this issue as they check various aspects of the connectivity between the edge switch and the core switch, such as Layer 3 reachability, Layer 2 adjacency, LACP configuration and status, VLAN trunking configuration, and interface status.
References:https://www.arubanetworks.com/techdocs/AOS-CX_10_04/CLI/GUID-8F0E7E8B-0F4B-4A3C-AE7

Explanation
The part of WPA Key Hierarchy that is used to encrypt and/or decrypt data is Pairwise Temporal Key (PTK).
PTK is a key that is derived from PMK Pairwise Master Key (PMK) is a key that is derived from PSK Pre-shared Key (PSK) is a key that is shared between two parties before communication begins , ANonce Authenticator Nonce (ANonce) is a random number generated by an authenticator (a device that controls access to network resources, such as an AP) , SNonce Supplicant Nonce (SNonce) is a randomnumber generated by supplicant (a device that wants to access network resources, such as an STA) , AA Authenticator Address (AA) is MAC address of authenticator , SA Supplicant Address (SA) is MAC address of supplicant using Pseudo-Random Function (PRF). PTK consists of four subkeys:
KCK Key Confirmation Key (KCK) is used for message integrity check
KEK Key Encryption Key (KEK) is used for encryption key distribution
TK Temporal Key (TK) is used for data encryption
MIC Message Integrity Code (MIC) key
The subkey that is specifically used for data encryption is TK Temporal Key (TK). TK is also known as Pairwise Transient Key (PTK). TK changes periodically during communication based on time or number of packets transmitted.
The other options are not part of WPA Key Hierarchy because:
PMK: PMK is not part of WPA Key Hierarchy, but rather an input for deriving PTK.
KCK: KCK is part of WPA Key Hierarchy, but it is not used for data encryption, but rather for message integrity check.
Nonce: Nonce is not part of WPA Key Hierarchy, but rather an input for deriving PTK.
References: https://en.wikipedia.org/wiki/Wi-Fi_Protected_Access#WPA_key_hierarchy_and_management
https://www.cwnp.com/wp-content/uploads/pdf/WPA2.pdf

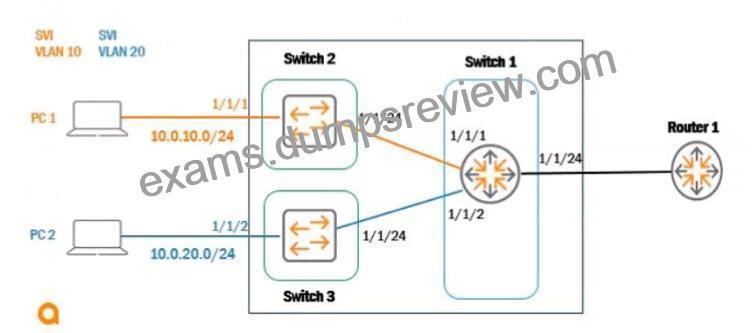

Explanation
The correct way to configure the routable interface for the subnet to be associated with this VLAN is to create an SVI Switched Virtual Interface (SVI) Switched Virtual Interface (SVI) is a virtual interface on a switch that represents a VLAN and provides Layer 3 routing functions for that VLAN . SVIs are used to enable inter-VLAN routing , provide gateway addresses for hosts in VLANs , apply ACLs or QoS policies to VLANs
, etc . SVIs have some advantages over physical routed interfaces such as saving interface ports , reducing cable costs , simplifying network design , etc . SVIs are usually numbered according to their VLAN IDs (e.g., vlan 10) and assigned IP addresses within the subnet of their VLANs . SVIs can be created and configured by using commands such as interface vlan , ip address , no shutdown , etc . SVIs can be verified by using commands such as show ip interface brief , show vlan , show ip route , etc . in the subnet on the 6300M stack.
An SVI is a virtual interface on a switch that represents a VLAN and provides Layer 3 routing functions for that VLAN. Creating an SVI in the subnet on the 6300M stack allows the switch to act as a gateway for the users in that VLAN and enable inter-VLAN routing between different subnets. Creating an SVI in the subnet on the 6300M stack also simplifies network design and management by reducing the number of physical interfaces and cables required for routing.
The other options are not correct ways to configure the routable interface for the subnet to be associated with this VLAN because:
Create a physically routed interface in the subnet on the 6300M stack for each downstream switch: This option is incorrect because creating a physically routedinterface in the subnet on the 6300M stack for each downstream switch would require using one physical port and cable per downstream switch, which would consume interface resources and increase cable costs. Creating a physically routed interface in the subnet on the 6300M stack for each downstream switch would also complicate network design and management by requiring separate routing configurations and policies for each interface.
Create an SVl in the subnet on each downstream switch: This option is incorrect because creating an SVI in the subnet on each downstream switch would not enable inter-VLAN routing between different subnets, as each downstream switch would act as a gateway for its own VLAN only. Creating an SVI in the subnet on each downstream switch would also create duplicate IP addresses in the same subnet, which would cause IP conflicts and routing errors.
Create an SVl in the subnet on the 6300M stack, and assign the management address of each downstream switch stack to a different IP address in the same subnet: This option is incorrect because creating an SVI in the subnet on the 6300M stack, and assigning the management address of each downstream switch stack to a different IP address in the same subnet would not enable inter-VLAN routing between different subnets, as each downstream switch would still act as a gateway for its own VLAN only. Creating an SVI in the subnet on the 6300M stack, and assigning the management address of each downstream switch stack to a different IP address in the same subnet would also create unnecessary IP addresses in the same subnet, which would waste IP space and complicate network management.
References: https://www.arubanetworks.com/techdocs/AOS-CX/10.05/HTML/5200-7295/index.html
https://www.arubanetworks.com/techdocs/AOS-CX/10.05/HTML/5200-7295/cx-noscg/l3-routing/l3-routing-ove
https://www.arubanetworks.com/techdocs/AOS-CX/10.05/HTML/5200-7295/cx-noscg/l3-routing/l3-routing-con

Explanation
LLDP Link Layer Discovery Protocol. LLDP is a vendor-neutral link layer protocol used by network devices for advertising their identity, capabilities, and neighbors on a local area network. is enabled by default on Aruba switches, but it can be disabled on a per-port basis using the no lldp command. To enable LLDP messages to be received by Switch 1 port 1/1/24, you need to enter the interface configuration mode for that port and use the lldp receive command.
References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/lldp/l
